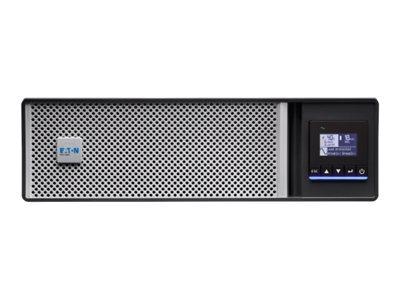

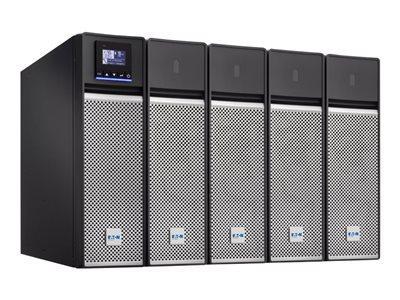

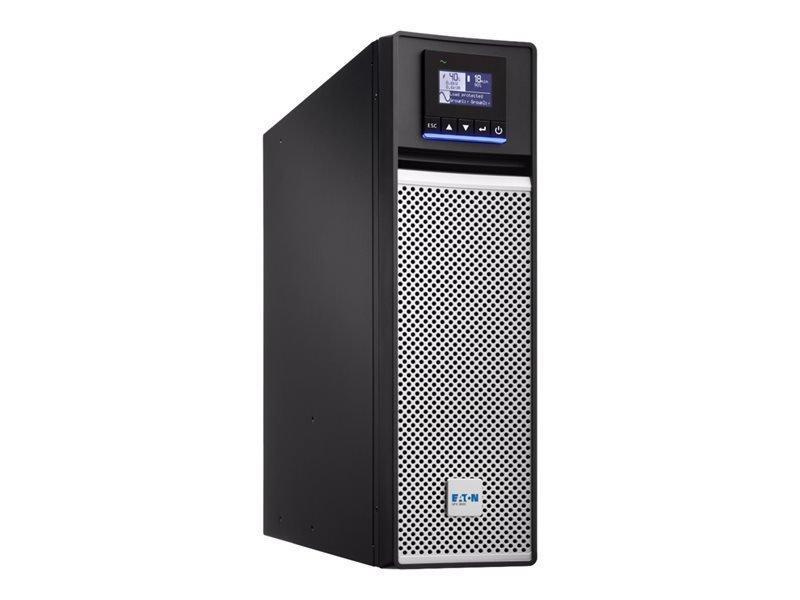

Eaton 5PX 2200VA/2200W Gen2 Line Interactive 3U Short Depth Rack/Tower UPS
£1216.79
Product Brand:EatonProduct SKU: 5PX2200IRT3UG2BS
Product ID:W0000000039
Product Category:UPS - Uninterruptible Power Supplies
The new Eaton 5PX Gen2 UPS provides Enterprise Networks and Edge IT equipment with best-in-class line-interactive power protection maximizing IT space and Service Continuity. Eaton 5PX Gen 2 offers powerful tools to remotely monitor, integrate with IT architecture and remotely deploy / maintain large installed base of UPSs.
→ Eaton 5PX Gen2 Datasheet
→ Eaton 5PX Gen2 Manual
| Check Stock | ||
|---|---|---|
| SKU | Stock | Location |
| 5PX2200IRT3UG2BS | 2 | Warehouse |
Stock & avalability change constantly & may differ at the time of order.
Ease of Operation
The innovative graphical LCD display makes configuration of the 5PX Gen2 easy and intuitive. The UPS offers an easy start-up configuration wizard to simplify your UPS setup process. Remote management and firmware upgrades are available with the optional Eaton Gigabit network management card. Advanced battery management and hot-swappable battery enables ease of maintenance and flexibility.
Efficiency
The 5PX Gen2 delivers 11% more power to connected servers than other UPS thanks to its unity power factor capability. It is Energy Star 2.0 certified for maximum efficiency across the full operating range. Energy is metered for each individual outlet group and is visible directly on the display and through Eaton’s Intelligent Power Manager.
Secure and Resilient
Prioritise connected devices for maximum uptime of essential services. Easily manage power switching and disaster recovery with load segment control. Advanced virtualisation capabilities make the Eaton 5PX Gen2 perfect for Enterprise and Edge IT applications. Netpack models further protect your content with dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and offer connection to Eaton’s Cyber Secured Monitoring cloud.
| Product Specs | |
|---|---|
| Rating (VA/W) | 2200VA / 2200W |
| Format | 3U Rack / Tower Convertible |
| Technology | Line-Interactive High Frequency (Pure Sinewave, Booster + Fader) |
| Input voltage range without using batteries | 160V-294V (adjustable to 150V-294V) |
| Input frequency range without using batteries | 47 to 70 Hz (50 Hz system), 56.5 to 70 Hz (60 Hz system), 40 Hz in low-sensitivity mode |
| Output voltage | 230 V (+6/-10 %) (Adjustable to 200V* / 208V / 220V / 230V / 240V), 50/60 Hz +/- 0.1 Hz (autosensing) |
| Input Connector | IEC C20 (16A) |
| Output Connectors | 8 x IEC C13 (10A), 2 x IEC C19 (16A) |
| Remote controlled sockets | 1 group of 2 x IEC C13 (10A), 1 group of 2 x IEC C13 (10A) + 1 x IEC C19 (16A) |
| Communication ports | 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote ON/OFF + 1 mini-terminal block for Remote Power OFF + 1 mini-terminal block for output relay |
| Communication slot | 1 slot for Network M2 (included in Netpack version), INDGW-M2 or Relay-MS cards |
| Operating temperature | 0 to 40 degrees Celsius |
| Noise level | <40 dB @ typical load |
| Safety | IEC/EN 62040-1, UL1778, CSA22.2 |
| EMC, Performance | IEC/EN 62040-2, FCC Class B, CISPR22 class B |
| Approvals | CE / CB report (TUV) / cTUVus / EAC / UKCA / Ukr / Cm |
| UPS Dimensions (mm) | 438x483x129 (3U) |
| UPS Weight (kg) | 27.5kg |
| Warranty | 3 years on electronics, 2 years on battery (3 years full warranty upon registration) |
